SHARP CORPORATION This document has been published to be used for after sales service only. The contents are subject to change without notice. q PARTS GUIDE 本書はサービス活動用に作成した資料です｡一部内容が製品の改良・改善等により予告なしに変わることがあります。 CODE:00ZMXC401P025 デジタルフルカラー複合機 Digital Full Color Multifunction System MX-C312 MX-C310/MX-C381 MX-C310FX MX-C381FX MX-C311/MX-C380 MODEL MX-C400/MX-C401 このパーツガイドに掲載されている表示価格ランクは消費税抜きです。 CONTENTS 1 外装部 (Exteriors) 2 操作ﾊﾟﾈﾙﾕﾆｯﾄ (Operation panel unit) [7.0inch MX-C312/C381(Brazil)] [8.5inch MX-C311/C381(Except Brazil)/ C381FX/C401] 3 操作ﾊﾟﾈﾙﾕﾆｯﾄ(Operation panel unit) [4.3inch MX-C310/C310FX/C380/C400] 4 RSPF 部 (RSPF section) 5 ｽｷｬﾅ部 (Scanner section) 6 給紙ﾄﾚｲ (Paper feed tray) 7 ﾄﾚｲ給紙ﾕﾆｯﾄ 1 (Tray paper feed unit 1) 8 ﾄﾚｲ給紙ﾕﾆｯﾄ 2 (Tray paper feed unit 2) 9 手差し給紙ﾄﾚｲ (MF paper feed tray) F 手差し給紙ﾕﾆｯﾄ (MF paper feed unit) G 右ﾄﾞｱﾕﾆｯﾄ 1(Right door unit 1) H 右ﾄﾞｱﾕﾆｯﾄ 2(Right door unit 2) I PS ﾕﾆｯﾄ (PS unit) J 1 次転写ﾕﾆｯﾄ 1(1st transfer unit 1) K 1 次転写ﾕﾆｯﾄ 2(1st transfer unit 2) L 1 次転写ﾕﾆｯﾄ 3(1st transfer unit 3) M 2 次転写ﾕﾆｯﾄ (2nd transfer unit) N 定着ﾕﾆｯﾄ 1(Fusing unit 1) O 定着ﾕﾆｯﾄ 2(Fusing unit 2) P 定着ﾕﾆｯﾄ 3(Fusing unit 3) Q 定着ﾕﾆｯﾄ 4(Fusing unit 4) R ﾚｼﾞｽﾄｾﾝｻｰｾｸｼｮﾝ(Resist sensor section) S 排紙ｾｸｼｮﾝ (Delivery section) T 定着・排紙駆動ｾｸｼｮﾝ (Fusing/Delivery drive section) U 給紙駆動ﾕﾆｯﾄ (Paper feed drive unit) V ﾒｲﾝ駆動ﾕﾆｯﾄ 1(Main drive unit 1) W ﾒｲﾝ駆動ﾕﾆｯﾄ 2(Main drive unit 2) X ﾌﾚｰﾑｾｸｼｮﾝ 1(Frame section 1) Y ﾌﾚｰﾑｾｸｼｮﾝ 2(Frame section 2) Z ﾌﾚｰﾑｾｸｼｮﾝ 3(Frame section 3) [ ﾌﾚｰﾑｾｸｼｮﾝ 4(Frame section 4) \ 梱包及び付属品 (Packing material & Accessories) Revised Edition

< 修正パーツガイド活用時の注意 > ・部品の互換性は下表の通り、No1～ 6 で表現しております。 <Note for use of the revised Parts Guide> ・Interchangeability of parts is expressed by No1~6 as shown in the table below. < 互換性 > 1 新・旧の互換性有り。 2 新の代わりに旧は使用可。旧の代わりに新は使用不可。 3 新の代わりに旧は使用不可。旧の代わりに新は使用可。 4 新・旧の互換性無。 5 旧 (a,b,c…) どうし一対、又は新 (a,b,c…) どうし一対で、互換性有。 6 その他 < 変更区分 > 新規追加変更廃止員数増・その他員数減パーツ修正 < 変更時期 > R / C ランニングチェンジ <Interchangeability> 1 Interchangeable. 2 Current type can be used in place of new type. New type cannot be used in place of current type. 3 Current type cannot be used in place of new type. New type can be used in place of current type. 4 Not interchangeable. 5 Interchangeable if replaced with same types of releted parts in use. 6 Others. <Change of Division> New & Addition Change Abolition Q'uantity (increase) /Others Q'uantity (decrease) Correction <Effective Time> R / C Running Change ・部品の追加・変更・廃止・員数の増減等の変更は下表のマークで表現しております。・変更時期のランニングチェンジは、R/C として記載しています。・Running Change of Effective Time is expressed as R/C. ・New & Addition, Change, Abolition, and Quantity change are expressed with the marks shown in the table below.

– 1-1 – Update : 2011/09/30 補修部品のランク付市場における補修部品の在庫管理が、適正に運営出来る手助けとなることを、目的とします。 A ランク : メンテナンスパーツ、メンテナンスパーツには入っていないがメンテナンスパーツに近い消耗パーツ。 B ランク :性能・機能パーツ（センサー、クラッチ等の電気パーツ）、消耗パーツ。 E ランク : 基板含むユニットパーツ。 D ランク : 整備パーツ（外装、パッキング、同梱パーツ）。 C ランク : 上記ランク以外のパーツ（基板の子部品を除いたもの）。 DEFINITION Rank A : Maintenance parts, and consumable parts which are not included in but closely related to maintenance parts Rank B : Performance/function parts (sensors, clutches, and other electrical parts), consumable parts Rank E : Unit parts including PWB Rank D : Preparation parts (External fitting, packing, parts packed together) Rank C : Parts other than the above (excluding sub components of PWB) 安全性・信頼性確保のため部品は、必ず正規のものをご使用下さい。 !印の商品は、安全上重要な部品です。交換をする時は、安全及び性能維持のため必ず指定の部品をご使用下さい。 Because parts marked with "! " is indispensable for the machine safety maintenance and operation, it must be replaced with the parts specific to the product specification. F 当モデルのサービス資料には、この資料以外にサービスマニュアル ( 回路図含む ) があります。合わせてご利用下さい。 F Other than this Parts Guide, please refer to documents Service Manual(including Circuit Diagram)of this model. F Please use the 13 digit code described in the right hand corner of front cover of the document, when you place an order. F For U.S. only-Use order codes provided in advertising literature. Do not order from parts department. [NOTE] * These parts are supplied by SMF 1 外装部 (Exteriors) NO. PARTS CODE Inter- change PRICE RANK NEW MARK PART RANK DESCRIPTION TR No. Effective time Ex. Ja. 1 CCOV-0289FC01 AH DX D Decoration cover rear upper 化粧ｶﾊﾞｰ後上 2 GCAB-1272FCZZ AH DX D Upper cabinet left 上ｷｬﾋﾞ左 3 GCOV-0286FCZZ AN EQ D Delivery cover 排紙ｶﾊﾞｰ 4 GCAB-1274FCZZ AZ FX D Delivery tray cabinet 排紙ﾄﾚｲｷｬﾋﾞ 5 LX-BZ1194FCZZ AF DS C Coin screw ｺｲﾝﾈｼﾞ 6 GCOV-0290FCZZ AG DS D Decoration cover rear middle 化粧ｶﾊﾞｰ後中 7 GCAB-1267FCZZ AP EQ D Left cabinet upper 左ｷｬﾋﾞ上 8 XHBS730P08000 AB DD C Screw(3×8) ﾋﾞｽ 9 XJBS740P12000 AB DD C Screw(4×12) ﾋﾞｽ 10 GCOV-0291FCZZ AK DX D Decoration cover rear lower 化粧ｶﾊﾞｰ後下 11 GCAB-1268FCZZ AW FG D Left cabinet 左ｷｬﾋﾞ 13 GCOV-0299FCZZ AE DJ D Decoration cover rear lower F 化粧ｶﾊﾞｰ後下 F 14 XEBS740P08000 AA DD C Screw(4×8) ﾋﾞｽ 15 GCAB-1287FCZ1 AP EQ D Left cabinet lower 左ｷｬﾋﾞ下 GCAB-1287FCZ2 1 AP EQ D Left cabinet lower 左ｷｬﾋﾞ下 09/01 R/C GCAB-1287FCZ3 1 AN EQ D Left cabinet lower 左ｷｬﾋﾞ下 10/03 R/C 16 LX-NZ0088FCZZ AC DD C Speed nut ｽﾋﾟｰﾄﾞﾅｯﾄ 17 PCOVP2207FCZ4 AC DJ D TN distination cover B(Refer to Matrix) TN 仕向地ｶﾊﾞｰ B PCOVP2207FCZ3 AC DJ D TN distination cover A(Refer to Matrix) TN 仕向地ｶﾊﾞｰ A 19 GCAB-1273FCZZ AM EG D Upper cabinet rear 上ｷｬﾋﾞ後 20 GCAB-1271FCZZ AL EB D Upper cabinet right 上ｷｬﾋﾞ右 21 GFTA-0029FCZZ AF DS D Rear cabinet cover lid 後ｷｬﾋﾞｶﾊﾞｰﾌﾀ 22 GCAB-1269FCZ1 BC GJ D Rear cabinet 後ｷｬﾋﾞ GCAB-1269FCZ2 1 BC GD D Rear cabinet 後ｷｬﾋﾞ 10/09 R/C 23 GCOV-0300FCZZ AE DS D Ozone filter cover ｵｿﾞﾝﾌｨﾙﾀｰｶﾊﾞｰ 24 PMLT-1793FCZZ AB DJ C Fusing fan cushion B 定着ﾌｧﾝﾓﾙﾄ B 25 PMLT-1792FCZZ AB DJ C Fusing fan cushion A 定着ﾌｧﾝﾓﾙﾄ A 26 TLABZ5112FCZZ AC DJ D Heater switch label (Janan) ﾋｰﾀｰｽｲｯﾁﾗﾍﾞﾙ 27 GCAB-1270FCZZ AK EB D Right cabinet middle 右ｷｬﾋﾞ中 GCAB-1270FCAZ 1 AK DX D Right cabinet middle 右ｷｬﾋﾞ中 09/01 28 MSPRD3926FCZZ AC DJ C ADU cabinet R lower spring ADU ｷｬﾋﾞ R 下ｽﾌﾟﾘﾝｸﾞ 29 GCAB-1284FCZZ AD DJ D ADU cabinet R lower ADU ｷｬﾋﾞ R 下 30 GCAB-1275FCZZ AK EB D Right cabinet lower 右ｷｬﾋﾞ下 GCAB-1275FCZ1 1 AK DX D Right cabinet lower 右ｷｬﾋﾞ下 09/01 R/C GCAB-1275FCZ2 1 AK DX D Right cabinet lower 右ｷｬﾋﾞ下 10/03 R/C 31 GCAB-1283FCZZ AD DJ D ADU cabinet F lower ADU ｷｬﾋﾞ F 下 32 MSPRD3925FCZZ AC DJ C ADU cabinet F lower spring ADU ｷｬﾋﾞ F 下ｽﾌﾟﾘﾝｸﾞ 33 GCAB-1266FCZZ AH DX D Front joint cabinet 前連結ｷｬﾋﾞ 34 GCAB-1265FCZZ AH DX D Front cabinet upper 前ｷｬﾋﾞ上 GCAB-1265FCZ1 3 AH DX D Front cabinet upper [Productivity improvement] 前ｷｬﾋﾞ上 08/10 R/C 35 GCOV-0287FCZZ AE DS D Decoration cover front upper 化粧ｶﾊﾞｰ前上 37 LBNDZ0090FCZZ AD DJ C Front cabinet band 前ｷｬﾋﾞﾊﾞﾝﾄﾞ 38 LDAIU0699FCZZ - AB DJ D LSU cleaning base [Missing parts code] LSU ｸﾘｰﾆﾝｸﾞﾍﾞｰｽ 1st lot 1

– 1-2 – Update : 2011/09/30 1 外装部 (Exteriors) Matrix NO. PARTS CODE Inter- change PRICE RANK NEW MARK PART RANK DESCRIPTION TR No. Effective time Ex. Ja. 39 PBARP0049FCZ1 - AG DS C LSU cleaning bar FT [Missing parts code] LSU ｸﾘｰﾆﾝｸﾞ棒 FT 1st lot 40 XEBS730P08000 AC DD C Screw(3×8) ﾋﾞｽ 41 LPLTM5027FCZZ AC DJ C Magnet catch plate S ﾏｸﾞﾈｯﾄｷｬｯﾁﾌﾟﾚｰﾄ S 42 GCOV-0288FCZZ AG DX D Decoration cover front middle 化粧ｶﾊﾞｰ前中 43 GCAB-1264FCZ1 AZ FQ D Front cabinet 前ｷｬﾋﾞ GCAB-1264FCZ2 3 AZ FQ D Front cabinet [Productivity improvement] 前ｷｬﾋﾞ 08/10 44 CBDGD0063FC01 AM EG D Model name plate(Refer to Matrix) 機種名ﾌﾟﾚｰﾄ CBDGD0063FC02 AM EG D Model name plate(Refer to Matrix) 機種名ﾌﾟﾚｰﾄ CBDGD0063FC03 AM EG D Model name plate(Refer to Matrix) 機種名ﾌﾟﾚｰﾄ CBDGD0063FC04 AM EG D Model name plate(Refer to Matrix) 機種名ﾌﾟﾚｰﾄ CBDGD0063FC05 AM EG D Model name plate(Refer to Matrix) 機種名ﾌﾟﾚｰﾄ CBDGD0063FC06 AM EG D Model name plate(Refer to Matrix) 機種名ﾌﾟﾚｰﾄ CBDGD0063FC16 AL EB D Model name plate(Refer to Matrix) 機種名ﾌﾟﾚｰﾄ CBDGD0063FC17 AL EB D Model name plate(Refer to Matrix) 機種名ﾌﾟﾚｰﾄ CBDGD0063FC29 AL EB D Model name plate(Refer to Matrix) 機種名ﾌﾟﾚｰﾄ 45 HBDGD0064FCZZ AN EG D Front cabinet badge 前ｷｬﾋﾞﾊﾞｯｼﾞ 46 XEBS740P10000 AA DD C Screw(4×10) ﾋﾞｽ 48 UCLEZ0181FCZ1 - AD DJ D LSU cleaning paper [Missing parts code] LSU ｸﾘｰﾆﾝｸﾞﾍﾟｰﾊﾟｰ 1st lot UCLEZ0181FCZ2 1 AC DJ D LSU cleaning paper LSU ｸﾘｰﾆﾝｸﾞﾍﾟｰﾊﾟｰ 10/03 R/C 49 TLABH5200FCZZ AB DJ D Plug caution label N (Japan) ﾌﾟﾗｸﾞｺｰｼｮﾝﾗﾍﾞﾙ N No.17 TN 仕向地ｶﾊﾞｰ B(TN distination cover B) TN 仕向地ｶﾊﾞｰ A(TN distination cover A) PARTS CODE Europe Australia,New Zealand Japan North America,LAG,Mexico Brazil PCOVP2207FCZ4 1st lot 1st lot 1st lot PCOVP2207FCZ3 1st lot 1st lot No.44 機種名ﾌﾟﾚｰﾄ (Model name plate) PARTS CODE MX-C310 MX-C380 MX-C400 MX-C311 MX-C381 MX-C401 MX-C310FX MX-C381FX MX-C312 CBDGD0063FC01 1st lot CBDGD0063FC02 1st lot CBDGD0063FC03 1st lot CBDGD0063FC04 1st lot CBDGD0063FC05 1st lot CBDGD0063FC06 1st lot CBDGD0063FC16 1st lot CBDGD0063FC17 1st lot CBDGD0063FC29 1st lot

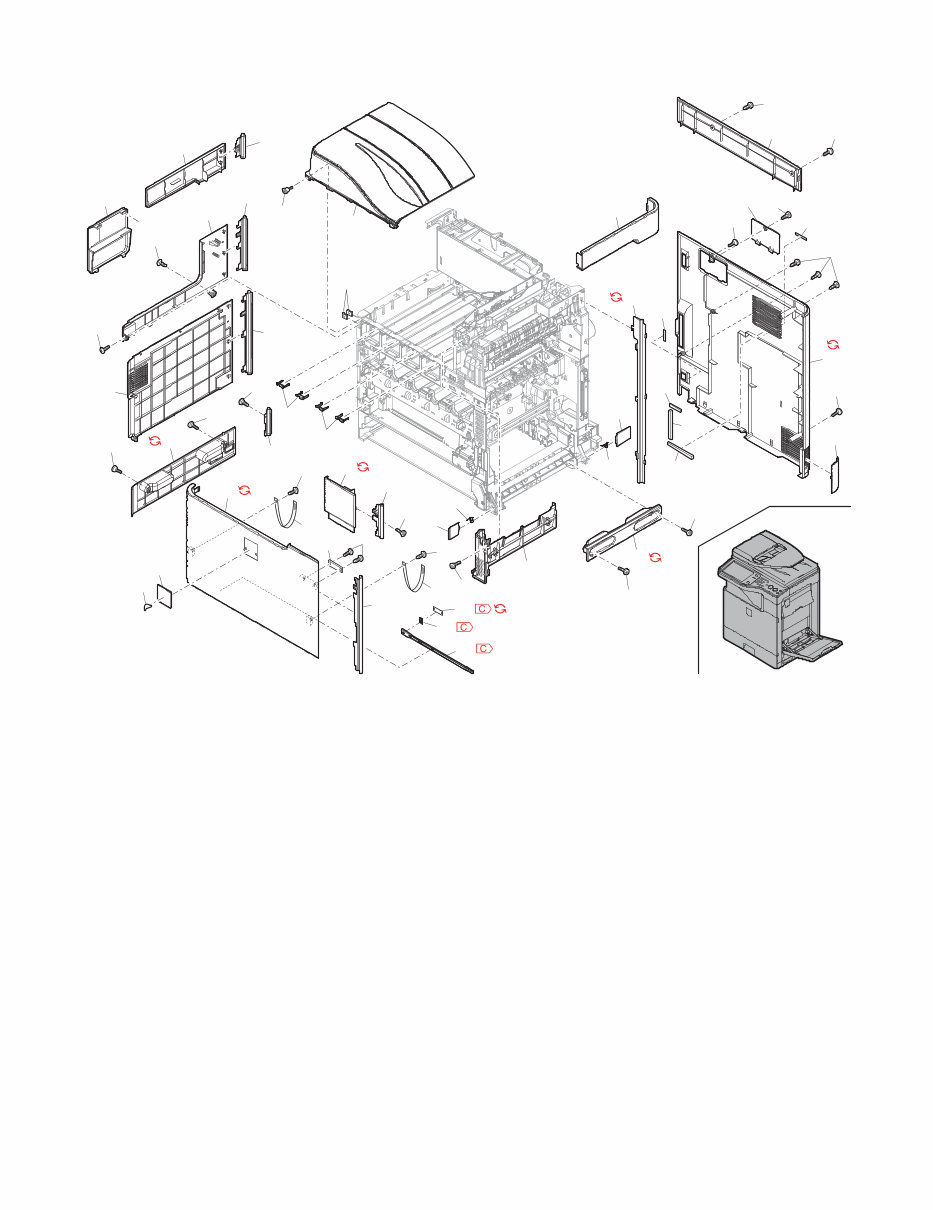

– 1-3 – Update : 2011/09/30 1 外装部 (Exteriors) 49 1 2 6 7 10 11 8 9 8 14 43 44 45 35 14 41 40 32 31 14 14 33 46 46 29 28 27 26 20 14 14 8 8 24 25 25 23 14 21 8 22 19 30 37 42 34 37 17 16 17 46 15 46 13 4 5 3 FCP11751 39 48 38
