Online Parts and Labor (CEG) / CEG Domestic - US / 300 2005-2010
SPECIAL CAUTIONS
AIR BAGS
Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag Special Cautions.
PAINT CODE LOCATION
Paint code located on drivers side door.
CLEAR COAT IDENTIFICATION
All colors are clear coat.

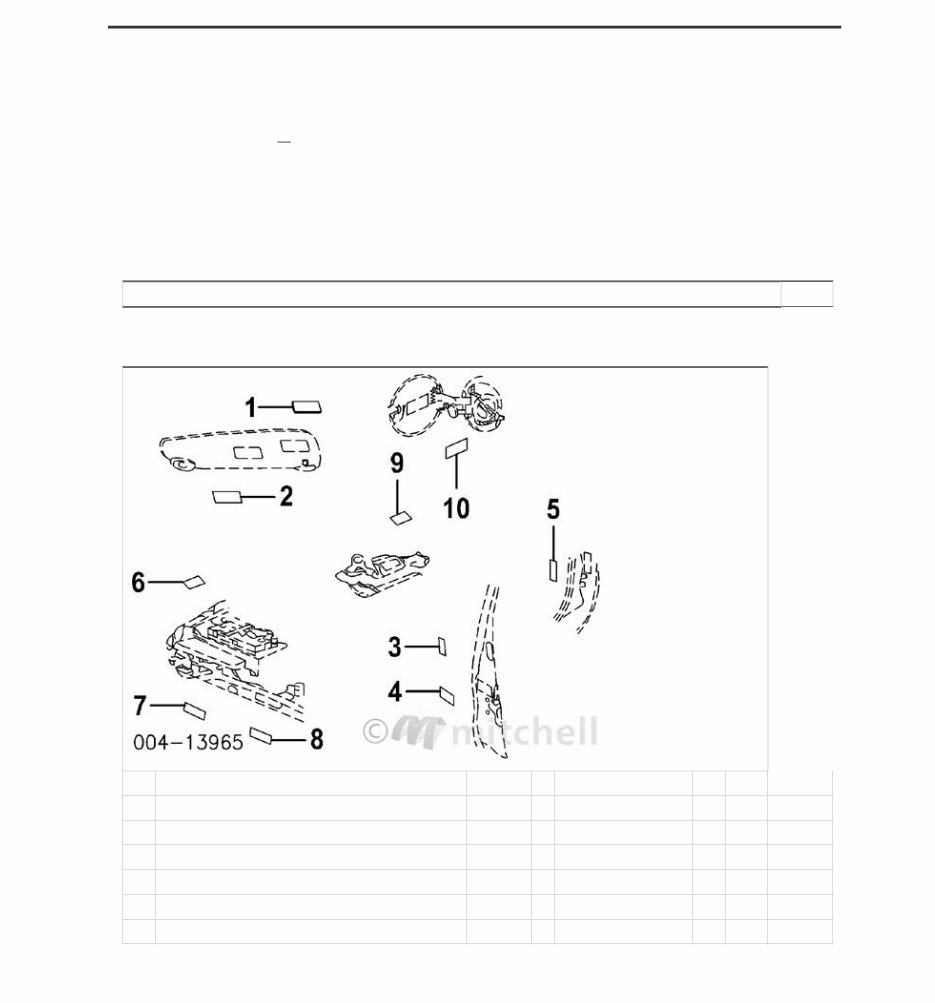

INFORMATION LABELS
Label, Air Bag Warning¶
1 No. 1 R 5170020AA 4.10
L 5170020AA 4.10
2 No. 2 R 5108000AA 2.00
L 5108000AA 2.00
Label, Air Bag Deactivation¶ 5108001AB 5.45
3 Label, Mercury Disposal¶ 05-07 5020533AC 5.00
08 5020533AC 5.00
09-10 5020533AC 5.00
4 Label, Tire Pressure¶ 5056245AB d6.70
5 Label, Seat Belt¶ 4680556AB 2.00
6 Label, Emission
2005¶
2.7L Eng 4578183AB 1.35
3.5L Eng 4578082AB 1.35
5.7L, 6.1L Eng 4578186AC .70
2006¶
2.7L Eng
w/Calif Emission 4726301AA 2.60
w/o Calif Emission 4578428AA 2.60
3.5L Eng
w/Calif Emission 4726305AA 2.50
w/o Calif Emission 4726456AA 1.20
5.7L Eng
w/Calif Emission 4578528AA .60
w/o Calif Emission 4726307AA 2.75
6.1L Eng 4578405AB 1.25
2007
2.7L Eng
w/Calif Emission 4726271AA .50
w/o Calif Emission 4726270AA .60
3.5L Eng
w/Calif Emission 4726351AA .50
w/o Calif Emission 4726350AA .60
5.7L Eng
w/Calif Emission 4578781AA .50
w/o Calif Emission 4578780AA .60
6.1L Eng 5038161AA .50
2008
2.7L Eng
w/Calif Emission 4578971AA 1.45
w/o Calif Emission 4578970AA 1.45
3.5L Eng
w/Calif Emission 4578981AA 1.45
w/o Calif Emission 4578980AA 1.45
5.7L Eng
w/Calif Emission 4578961AA 1.35
w/o Calif Emission 4578960AA 1.45
6.1L Eng 5038342AA 1.35
Page 2 of 213 Print Article
2009
3.5L Eng
w/Calif Emission 4726352AB 5.50
w/o Calif Emission 68049351AB 1.35
5.7L Eng 5270571AB 1.35
6.1L Eng 5038466AB 1.35
2010
2.7L Eng
w/Calif Emission 68067035AB 1.25
w/o Calif Emission 68067034AB 1.25
3.5L Eng
w/Calif Emissions 68067037AB 1.35
w/o Calif Emission 68067036AB 1.35
5.7L Eng 68066027AB 1.35
6.1L Eng 68066029AB 1.25
¶Order by Application
Label, Power Steering Fluid 5271908AA 8.50
7 Label, Battery Jump Start 56041047 d8.60
Label, Battery¶ 4606818AA 4.35
8 Label, A/C Caution¶ 55056343AA 27.60
¶Order by Application
Label, A/C Refrigerant Caution 4596521AC 5.45
Label, Brake Fluid¶ 52128784AA 14.35
¶Order by Application
Label, Warning 5056223AA 2.25
Label, Towing Notice 05-06 4780736AB 25.50
07-10 4780736AD 7.95
Label, Child Protection 5056072AA 2.85
Label, Air Bag Warning¶ (4) 4664280AD 4.60
Label, Vehicle Certification¶ 4040858 6.70
9 Label, Jack Caution¶ 52110400AB 7.25
10 Label, Fuel Door¶ 5152042AA 3.10
¶Order by Application
FRONT BUMPER
Use Procedure Explanations 1 and 28 with the following text.
Refinish Bumper Cover
w/SRT-8 Model 3.8
w/o SRT-8 Model 3.0
Refinish Bumper Strip R .5
L .5
Page 3 of 213 Print Article
Refinish Bumper Reinforcement 1.0
R&I Bumper Cover #1.2
#Includes R&R Front Splash Shield
O/H Bumper Assy (Includes R&I) #1.8
#Includes R&I/R&R Grille & Front Splash Shield, Includes Drill Time
Add to R&R Bumper Cover or O/H Bumper Assy
w/Fog Lamps .4
w/Headlamp Washer .3
NOTE 1: When replacing Impact Bar spot welding is not necessary.
NOTE 2: Certain Components within this section are identified as High Strength Low Alloy (HSLA) steel.
NOTE 3: All Parts in this section are included in overhaul unless noted otherwise.

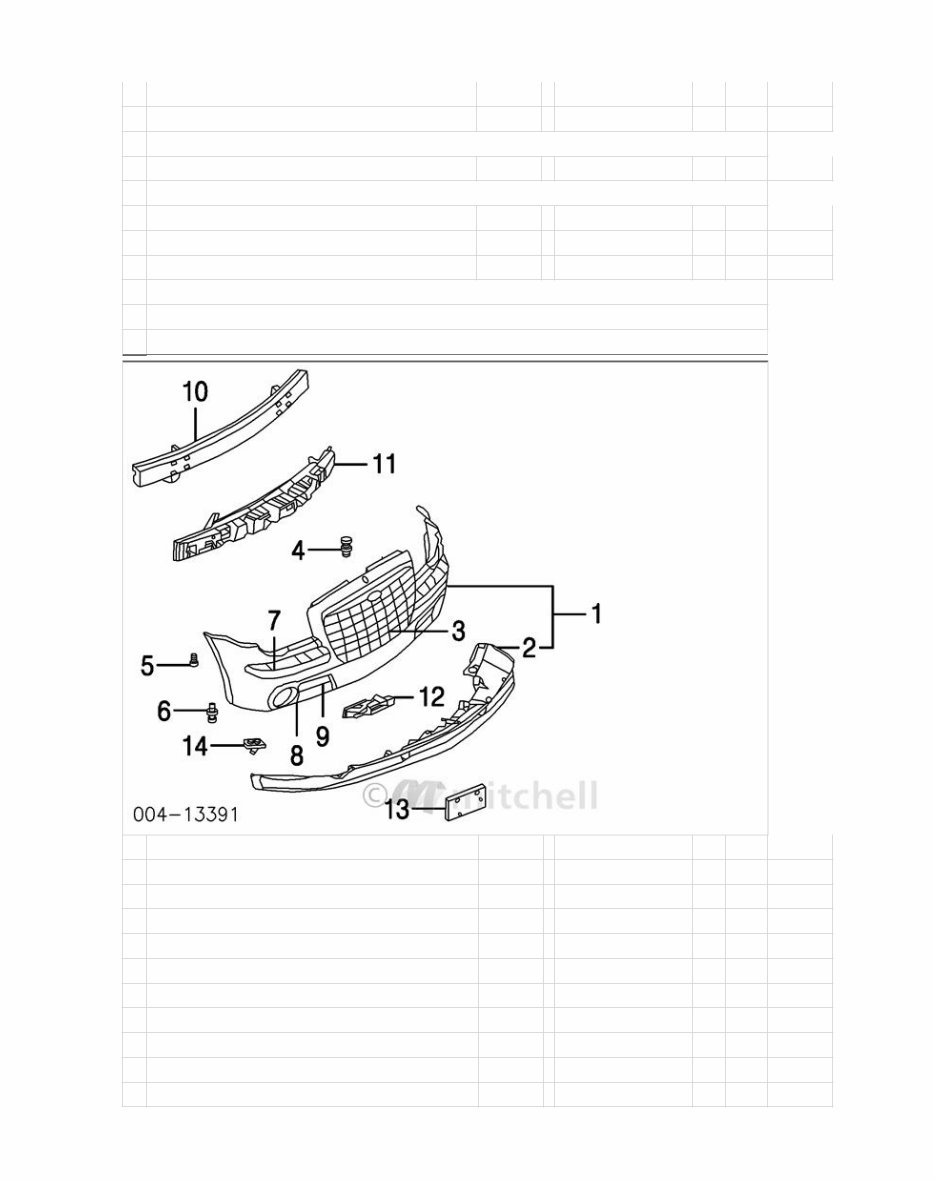

1 Cover, Bumper (P)
2005-06
2.7L Eng 4806112AD #1.8 500.00
3.5L Eng 4805773AD #1.8 449.00
5.7L Eng 4805774AD #1.8 400.00
6.1L Eng 5030576AB #1.8 §709.00
2007-10¶
2.7L Eng 4806112AD #1.8 500.00
3.5L Eng 4805773AD #1.8 449.00
5.7L Eng 4805774AD #1.8 400.00
6.1L Eng
Page 4 of 213 Print Article
w/Headlamp Washer 5030576AB #1.8 §709.00
w/o Headlamp Washer 4854709AA #1.8 937.00
¶Order by VIN
(P) Paint to Match
#Includes R&I/R&R Grille & Front Splash Shield
2 Spoiler, Front Cover-Serviced w/Bumper Cover
3 Grille Assy-See Grille Section
4 Pin, Push (4) 6504521 4.45
5 Screw, Mounting R 6503929 2.60
L 6503929 2.60
6 Pin, Bumper R 4806110AA 4.60
L 4806110AA 4.60
7 Strip, Bumper
3.5L Eng R 4805936AA .2 62.45
L 4805937AA .2 62.45
5.7L Eng
w/Headlamp Washer R 4806124AA .2 119.00
L 4806125AA .2 119.00
w/o Headlamp Washer R 4805938AA .2 104.00
L 4805939AA .2 104.00
6.1L Eng
Black (Code XR) R N.A. .2 0.00
L 1AK29TZZAA .2 106.00
Silver (Code S2) R 1AK28TZZAA .2 106.00
L 1AK29TZZAA .2 106.00
Silver Steel (Code A4) R 1AK28TZZAA .2 106.00
L 1AK29TZZAA .2 106.00
Paint to Match R 1AK28TZZAA .2 106.00
L 1AK29TZZAA .2 106.00
8 Cover, Lower Front
w/Fog Lamps R 4805930AA .1 27.50
L 4805931AA .1 27.50
w/o Fog Lamps R 4805942AA .1 12.35
L 4805943AA .1 12.35
9 Panel, Closeout R 4806084AA .1 29.75
L 4806085AA .1 29.75
Clip, Spring (2/Side) R 4806226AA 5.70
L 4806226AA 5.70
10 Reinforcement, Bumper (HSLA) 68100209AB #.6 152.00
#w/Bumper Cover Removed, Not Included in O/H
Bracket, Bumper Reinf-See Front Inner Structure Section
Screw & Washer, Mounting (8) 6505145AA 15.25
Page 5 of 213 Print Article
11 Absorber, Energy 05-07 4805729AB 199.00
08-10 4806454AB 199.00
Screw, Mounting R 6503819 6.00
L 6503819 6.00
12 Duct, Brake Cooling
6.1L Eng R 5029900AA 87.35
L 5029901AA 87.35
Sensor, Ambient Temp 5149025AA m #.3 9.35
#Not Included in O/H
13 Bracket, License Plate 4805866AA .2 29.35
14 Nozzle, Headlamp Washer-See Front Lamps Section
GRILLE
R&I Grille #1.4
#Includes R&I Bumper Cover
Page 6 of 213 Print Article

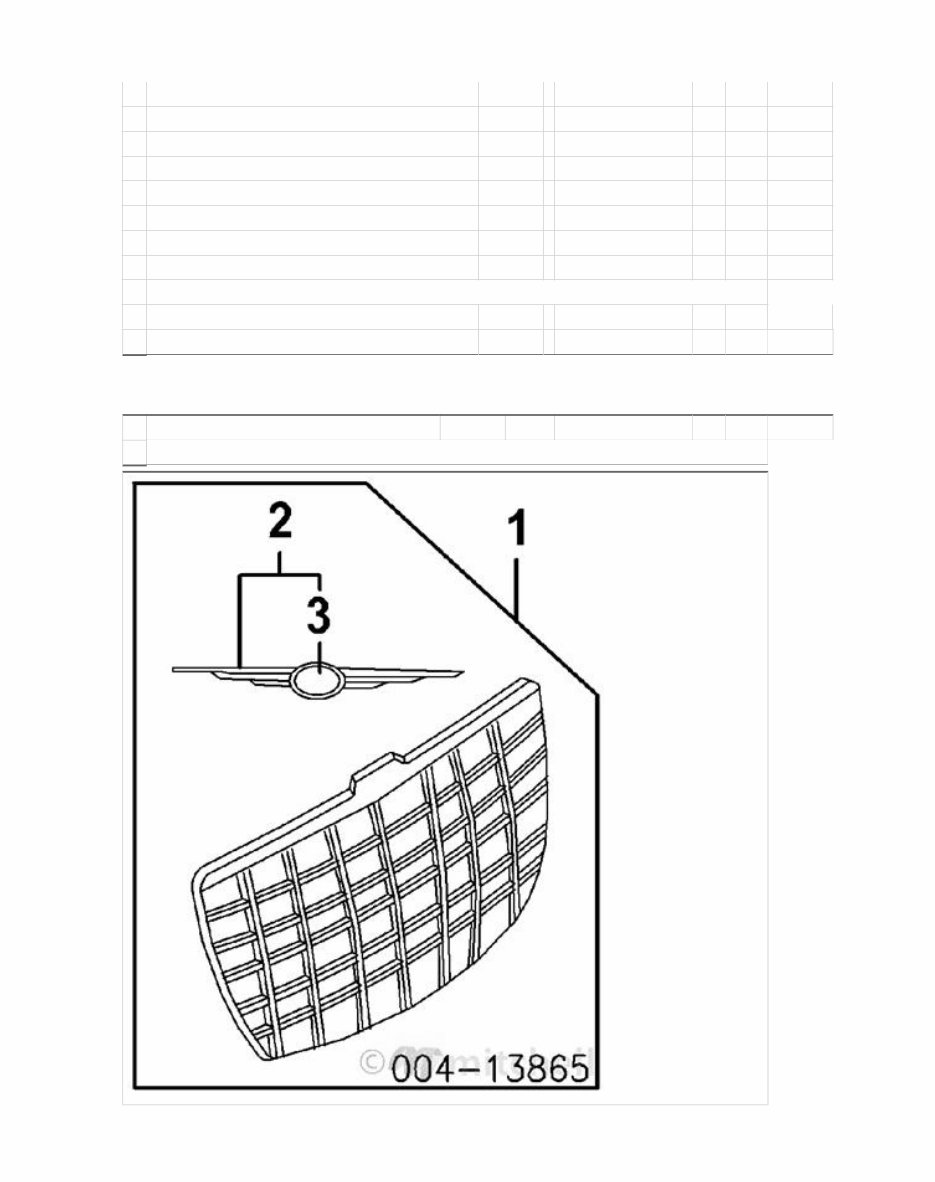

1 Grille Assy
2005-07
2.7L, 3.5L Eng 4805926AC #1.4 272.00
5.7L, 6.1L Eng 4805928AC #1.4 314.00
2008
Code MFV 4805926AC #1.4 272.00
Code MF1 4806365AA #1.4 330.00
Code MF5 4805928AC #1.4 314.00
Code MZ9 57010622AA #1.4 577.00
2009
Code MFJ 1NR61SZ0AA #1.4 335.00
Code MFV
w/Fog Lamps 4805928AC #1.4 314.00
w/o Fog Lamps 1NR611ZRAA #1.4 335.00
Code MF1 4806365AA #1.4 330.00
Code MF5
w/Fog Lamps 1NR611ZHAA #1.4 335.00
w/o Fog Lamps 57010622AA #1.4 577.00
2010
Code MFJ 1NR61SZ0AA #1.4 335.00
Code MFV
w/Fog Lamps 4805928AC #1.4 314.00
w/o Fog Lamps 1NR611ZRAA #1.4 335.00
Code MF5 1NR611ZHAA #1.4 335.00
#Includes R&I Bumper Cover
2 Medallion Assy, Winged (Adhesive)
2005-Serviced w/Grille Assy
2006¶ 5011615AA .2 72.10
2007-10-Serviced w/Grille Assy
3 Medallion (Adhesive)¶ (a) 4805157 .2 47.45
(a) Included w/Winged Medallion Assy
¶Included w/Grille Assy
Screw, Tapping (10) 6035204 3.85
FRONT LAMPS
COMBINATION LAMP
Aim Combination Lamps .4
R&I Combination Lamp R #1.5
L #1.5
#Includes R&I Bumper Cover
NOTE: R&R Does Not include aim lamps.
Page 7 of 213 Print Article

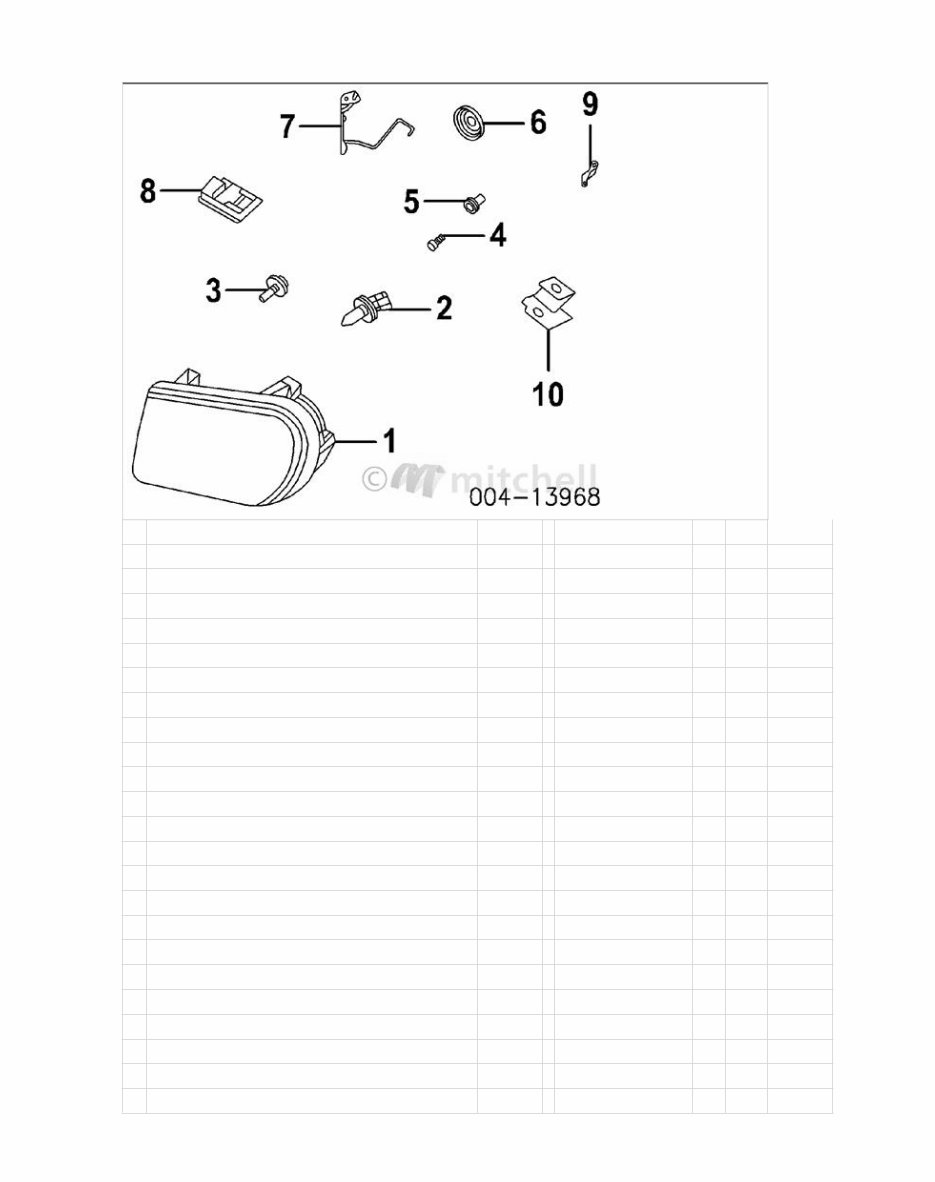

1 Lamp, Combination
2005
2.7L, 3.5L Eng R 4805756AH #1.5 §310.00
L 4805757AH #1.5 §310.00
5.7L Eng
Halogen R 57010862AA #1.5 §355.00
L 57010863AA #1.5 §355.00
Xenon
w/ H/Lamp Leveling R 57010760AA #1.5 684.00
L 57010761AA #1.5 684.00
w/o H/Lamp Leveling R 57010758AA #1.5 §1150.00
L 57010759AA #1.5 §1150.00
6.1L Eng R 57010758AA #1.5 §1150.00
L 57010759AA #1.5 §1150.00
2006
Halogen R 57010862AA #1.5 §355.00
L 57010863AA #1.5 §355.00
Xenon
2.7L, 3.5L Eng R 57010758AA #1.5 §1150.00
L 57010759AA #1.5 §1150.00
5.7L Eng
w/ H/Lamp Leveling R 57010760AA #1.5 684.00
L 57010761AA #1.5 684.00
w/o H/Lamp Leveling R 57010758AA #1.5 §1150.00
Page 8 of 213 Print Article
L 57010759AA #1.5 §1150.00
6.1L Eng R 57010758AA #1.5 §1150.00
L 57010759AA #1.5 §1150.00
2007
Halogen
w/Delay Option R 57010862AA #1.5 §355.00
L 57010863AA #1.5 §355.00
w/o Delay Option R 4805756AH #1.5 §310.00
L 4805757AH #1.5 §310.00
Xenon R 57010758AA #1.5 §1150.00
L 57010759AA #1.5 §1150.00
2008
Halogen
w/Delay Option R 57010862AA #1.5 §355.00
L 57010863AA #1.5 §355.00
w/o Delay Option R 4805756AI #1.5 250.00
L 4805757AI #1.5 175.00
Xenon R 57010758AA #1.5 §1150.00
L 57010759AA #1.5 §1150.00
2009
To 11-1-08
Halogen
w/Delay Option R 57010862AA #1.5 §355.00
L 57010863AA #1.5 §355.00
w/o Delay Option R 57010756AA #1.5 274.00
L 57010757AA #1.5 205.00
Xenon R 57010758AA #1.5 §1150.00
L 57010759AA #1.5 §1150.00
From 11-1-08
Halogen
w/Delay Option R 57010862AA #1.5 §355.00
L 57010863AA #1.5 §355.00
w/o Delay Option R 57010756AA #1.5 274.00
L 57010757AA #1.5 205.00
Xenon R 57010758AA #1.5 §1150.00
L 57010759AA #1.5 §1150.00
2010
Halogen
w/Delay Option R 57010862AA #1.5 §355.00
L 57010863AA #1.5 §355.00
w/o Delay Option R 57010756AA #1.5 274.00
L 57010757AA #1.5 205.00
Page 9 of 213 Print Article
Xenon R 57010758AA #1.5 §1150.00
L 57010759AA #1.5 §1150.00
#Includes R&I Bumper Cover
2 Bulb, Low Beam
2.7L, 3.5L Eng R L0009006 #.2 15.45
L L0009006 #.2 15.45
5.7L Eng
Halogen R L0009006XS #.2 16.35
L L0009006XS #.2 16.35
Xenon 05-08 R 4865941AC #.2 215.00
L 4865941AC #.2 215.00
09-10 R 4865941AC #.2 215.00
L 4865941AC #.2 215.00
6.1L Eng 05-08 R 4865941AC #.2 215.00
L 4865941AC #.2 215.00
09-10 R 4865941AC #.2 215.00
L 4865941AC #.2 215.00
3 Bulb, High Beam¶
Halogen R L0009005 #.2 16.35
L L0009005 #.2 16.35
Xenon R L09005XSLL #.2 15.60
L L09005XSLL #.2 15.60
¶Order by Application
4 Bulb, Park/Signal R L0003757AK #.2 4.45
L L0003757AK #.2 4.45
#R&R One Side Complete, Included in R&I/R&R Combination Lamp
5 Socket, Park/Signal Bulb
2005-08
2.7L, 3.5L Eng R 5139885AA 5.35
L 5139885AA 5.35
5.7L Eng
Halogen H/Lamps R 5139886AA 4.75
L 5139886AA 4.75
Xenon H/Lamps R 5139887AA 4.45
L 5139887AA 4.45
6.1L Eng R 5139887AA 4.45
L 5139887AA 4.45
2009
To 11-1-08
2.7L, 3.5L Eng R 5139885AA 5.35
L 5139885AA 5.35
5.7L Eng
Page 10 of 213 Print Article
